Huayu fence cargo trailer is usually used to transport livestock and animals, bagged bulk cargo, vegetables and fruits, building materials, mechanical parts and so on.

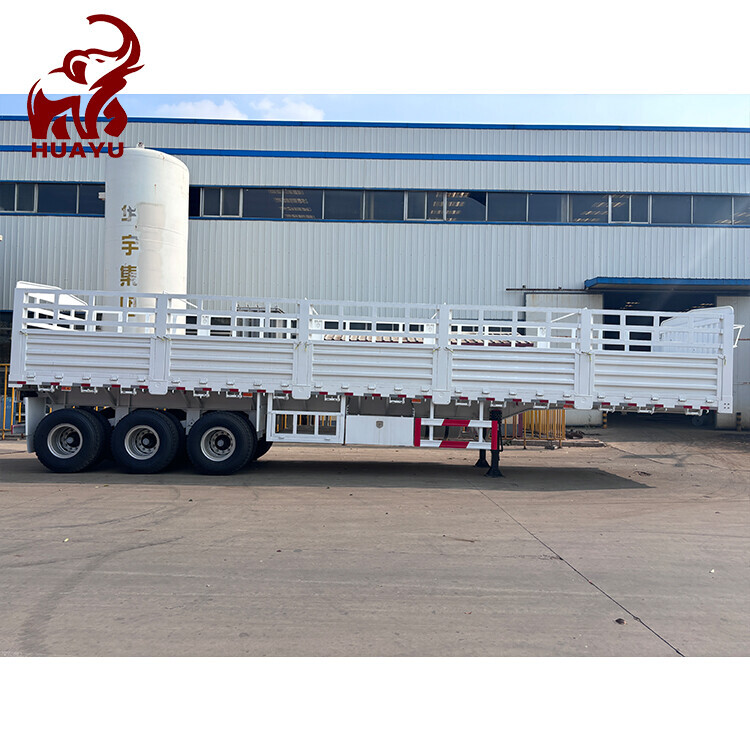

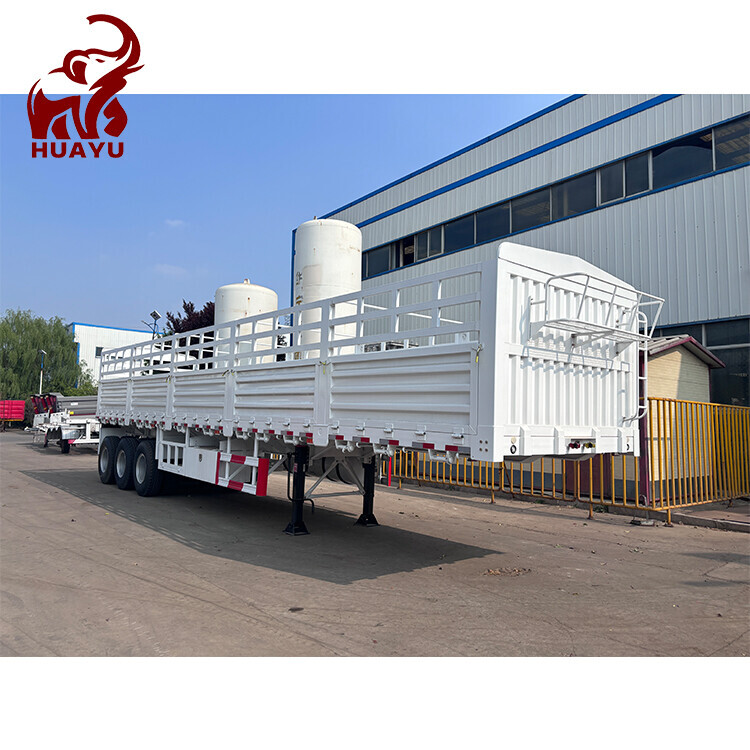

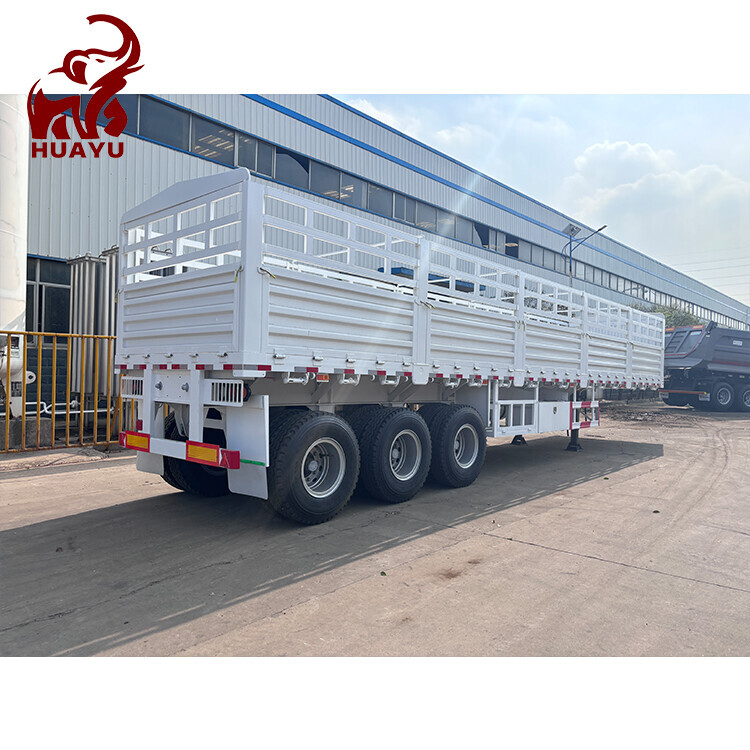

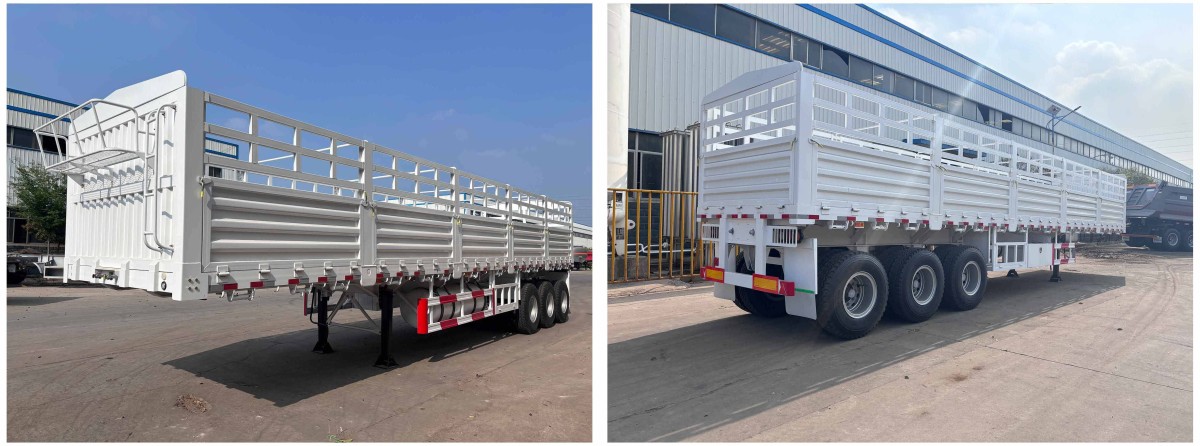

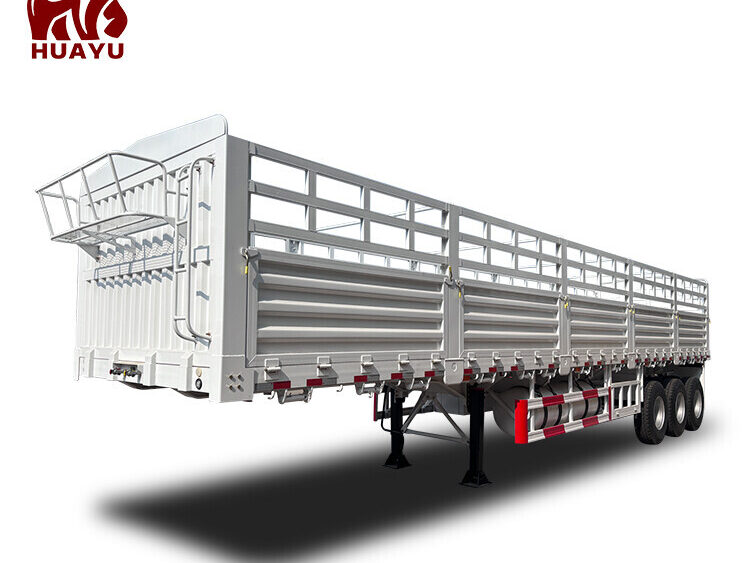

Trailer Type: 3 Axle Carrier Livestock Animal Fence Cargo Semi Trailer
Price Range: $12,00-18,000
Delivery Time: 7-20 days
Load capacity: 60 ton
Application: bulk cargo, livestock,building materials
| Dimension | 12.6m×2.6m×3.3m |
| Payload | 60Tons |
| Fence height | 0.4+0.4m(middle gap 0.2m) |
| Side wall height | 0.6m |
| Tare weight | About 8.5 tons |
| Twist lock | 12 units |
| Main beam | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. |
| Frame Beam | Top Flange 14mm,width 140mm; MiddleFlange 8mm; Bottom Flange 16mm,width 140mm, main beam height 500mm |
| Frame Floor | The Thickness is 3mm pattern |
| Edge beam | 16# Channel |
| Through beam | 10#Channel |
| Along beam | 6#Channelx6 |
| Axle | 3 axles, |

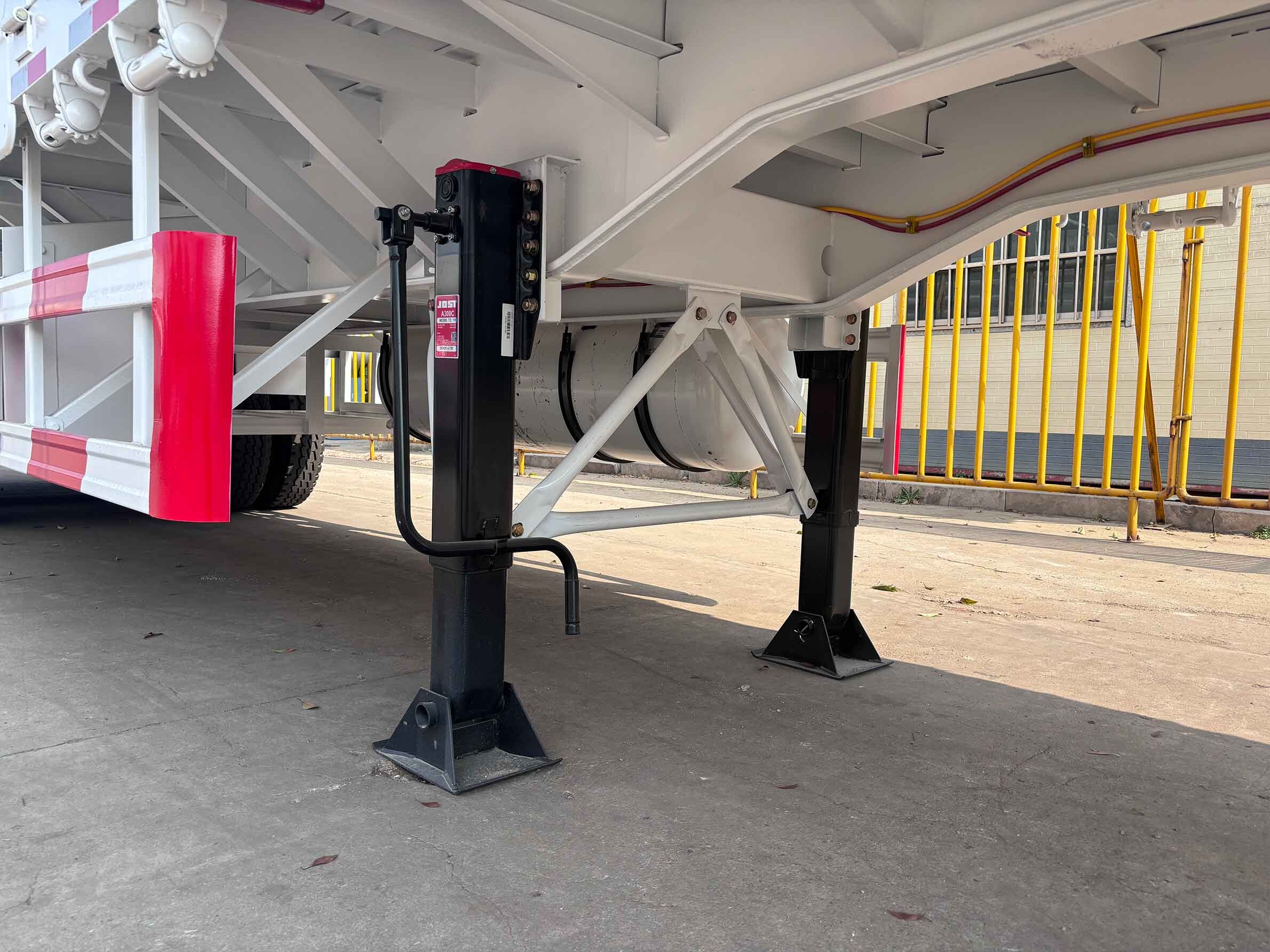

| Landing Gear | 28T lifting capacity with two speed JOST brand |
| King Pin | 2.00 or 3.5 inch bolt-in king pin |

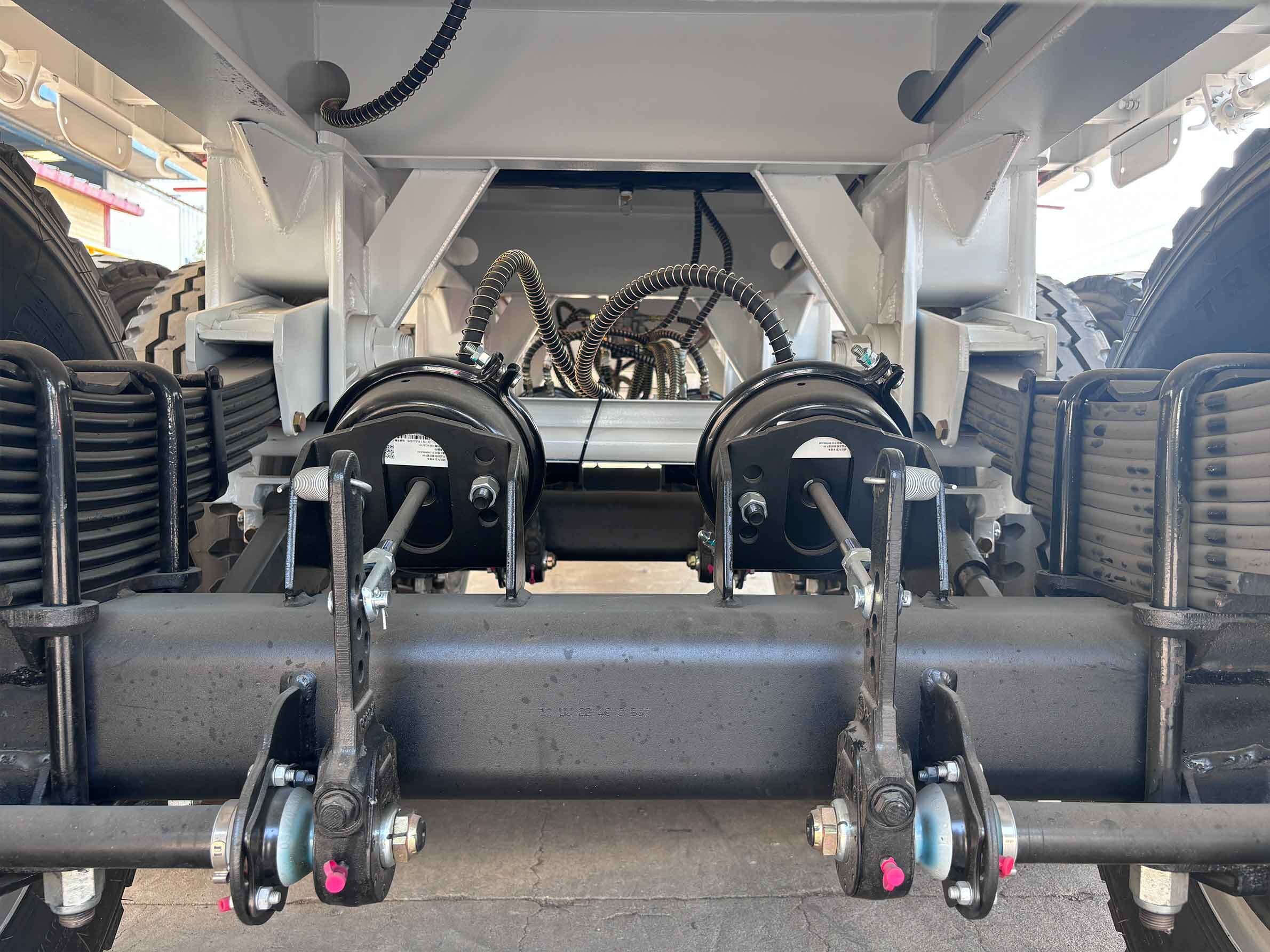

| Suspension | Mechanical suspension re forced type |
| Leaf Spring | 90mm(W)*16mm(T)*10 Layer |

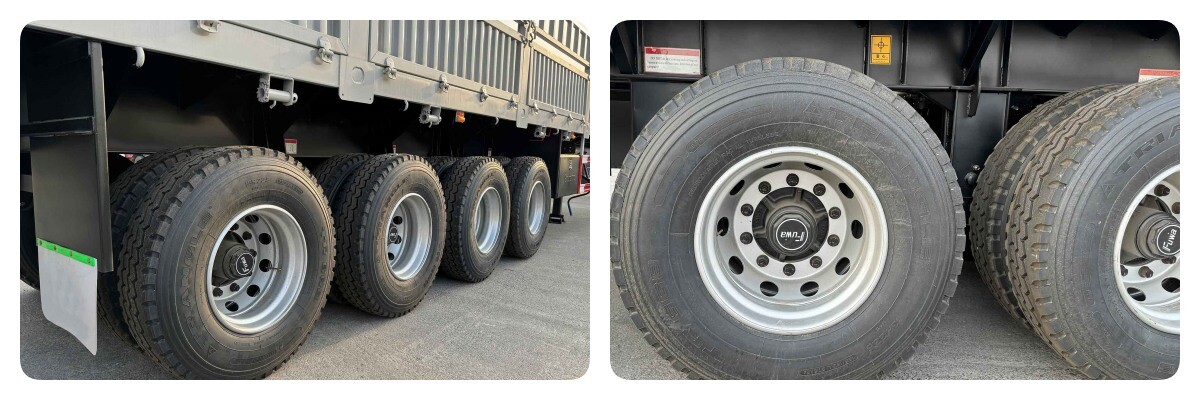

| Tire | 12pcs |
| Accessories | One standard tool box |
| Spare tire rack | One |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti corrosive prime, 2 coats of final paint |
The fence cargo trailer are independently processed by HUAYU , and the parts are all world-renowned brands.Fence cargo trailer Axle and braking system are provided by BPW, while the fence cargo Trailer’s landing gear is provided by JOST.
The standard size of this fence semi-trailer is 40 feet, we can make different sizes according to your needs, such as 20/40/45 feet, all can be customized. Not only that, the biggest highlight of this semi-trailer is that the fence on it is removable, which can be used for multi-purpose, when you don’t need the fence or transporting containers, you can remove the fence.
HUAYU factory covers an area of 600,000 square meters with 10 semi-trailer production lines, with low plate semi-trailer workshop, powder tank semi-trailer workshop, oil tank semi-trailer workshop. HUAYU has the most professional production team of 500 employees and 50 professional semi-trailer designers, and can accept customized services to meet any customized needs of customers
Packing and shipping area
Trailer site production area
Tank trailer production area
Aluminum alloy trailer production area
